Alnico 2-Pole Holding Magnet

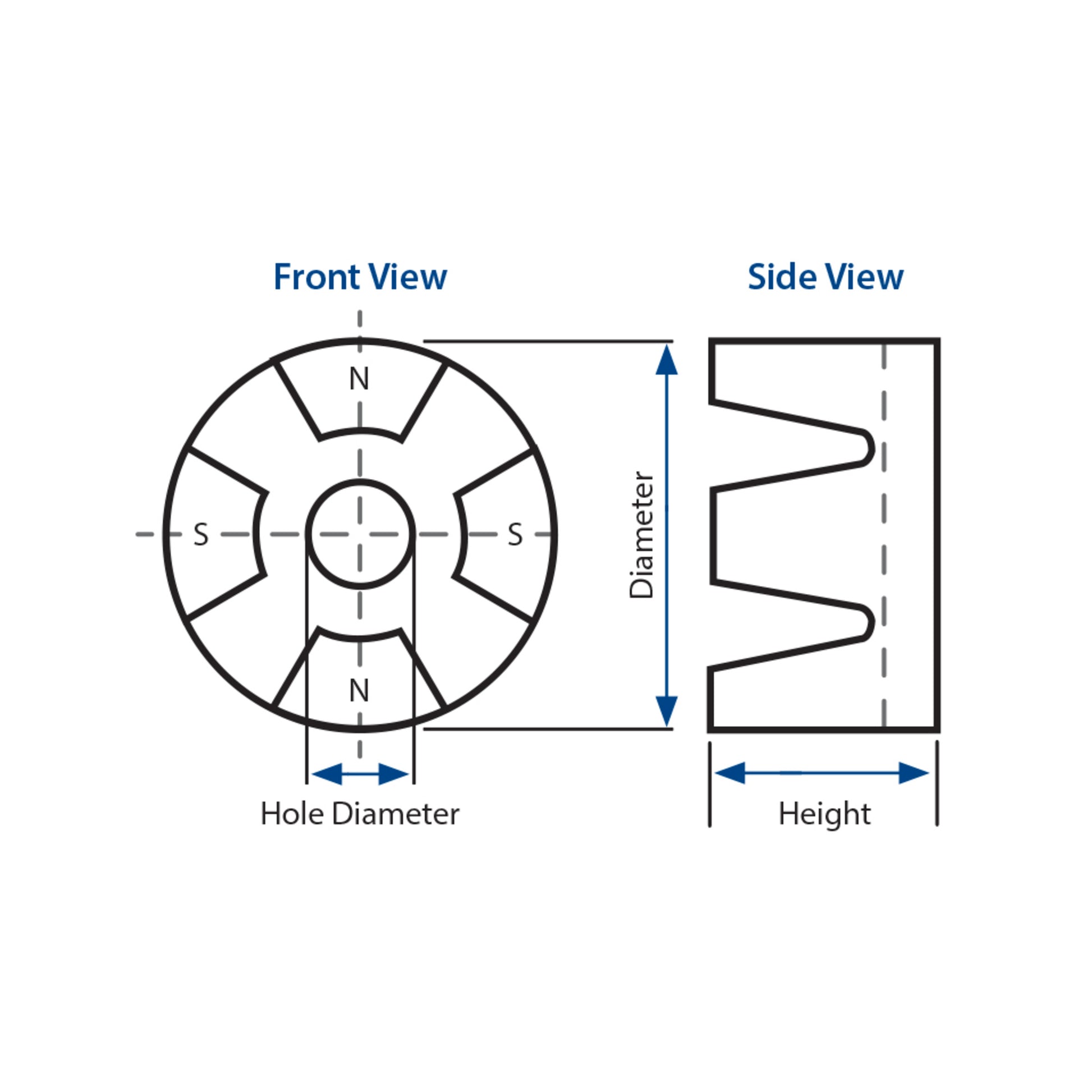

.75" Dia. x .5" H w/ .218" hole¸ 4 lbs. pull
AH2822N

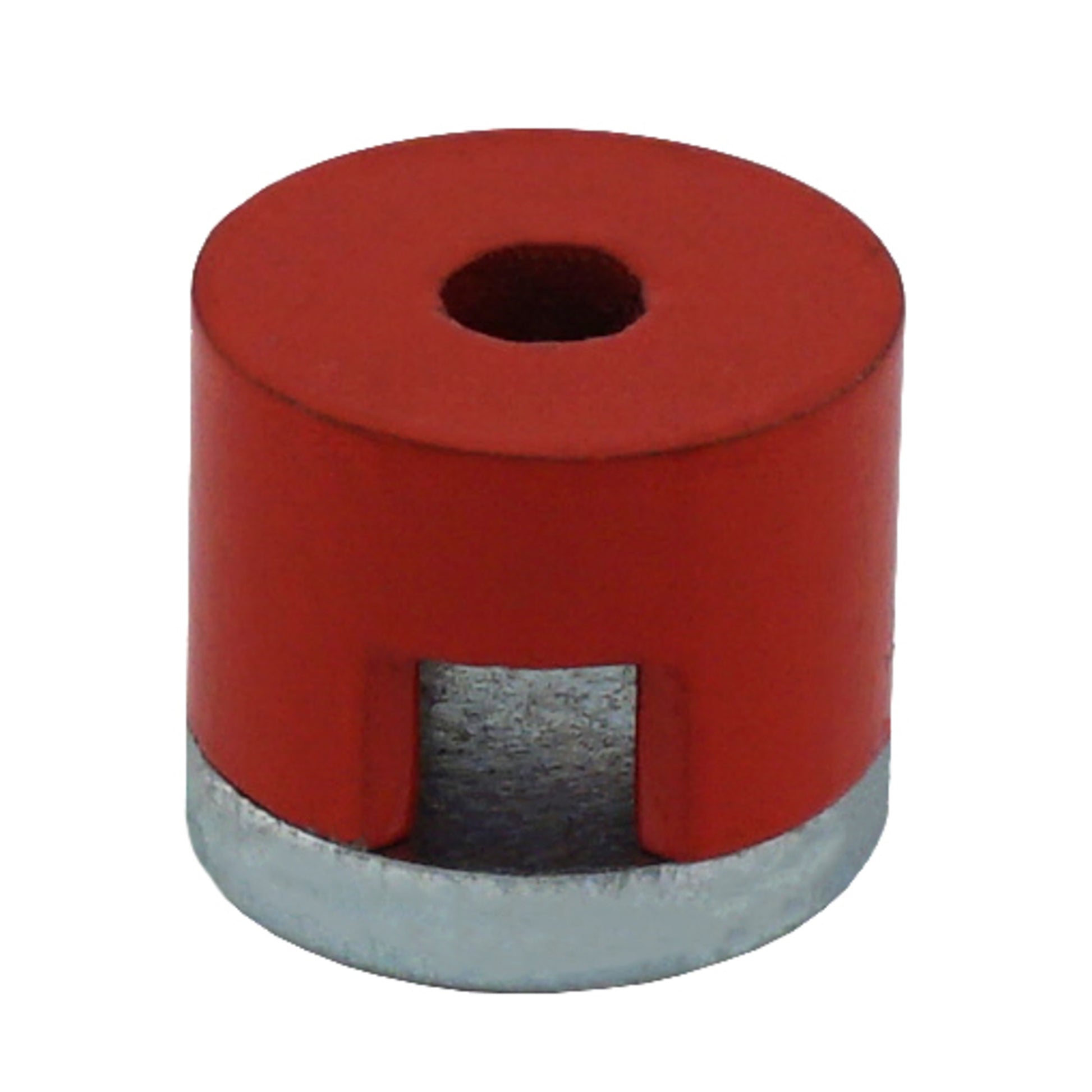

These Alnico 5 holding magnets can be used in a variety of industrial and consumer applications. Center hole allows for easy mounting. Each includes keeper to retain magnetic strength when not in use.
- Use as work holding devices for wood cutting, sign making or other hobby applications
- Ideal for school experiments and high heat applications

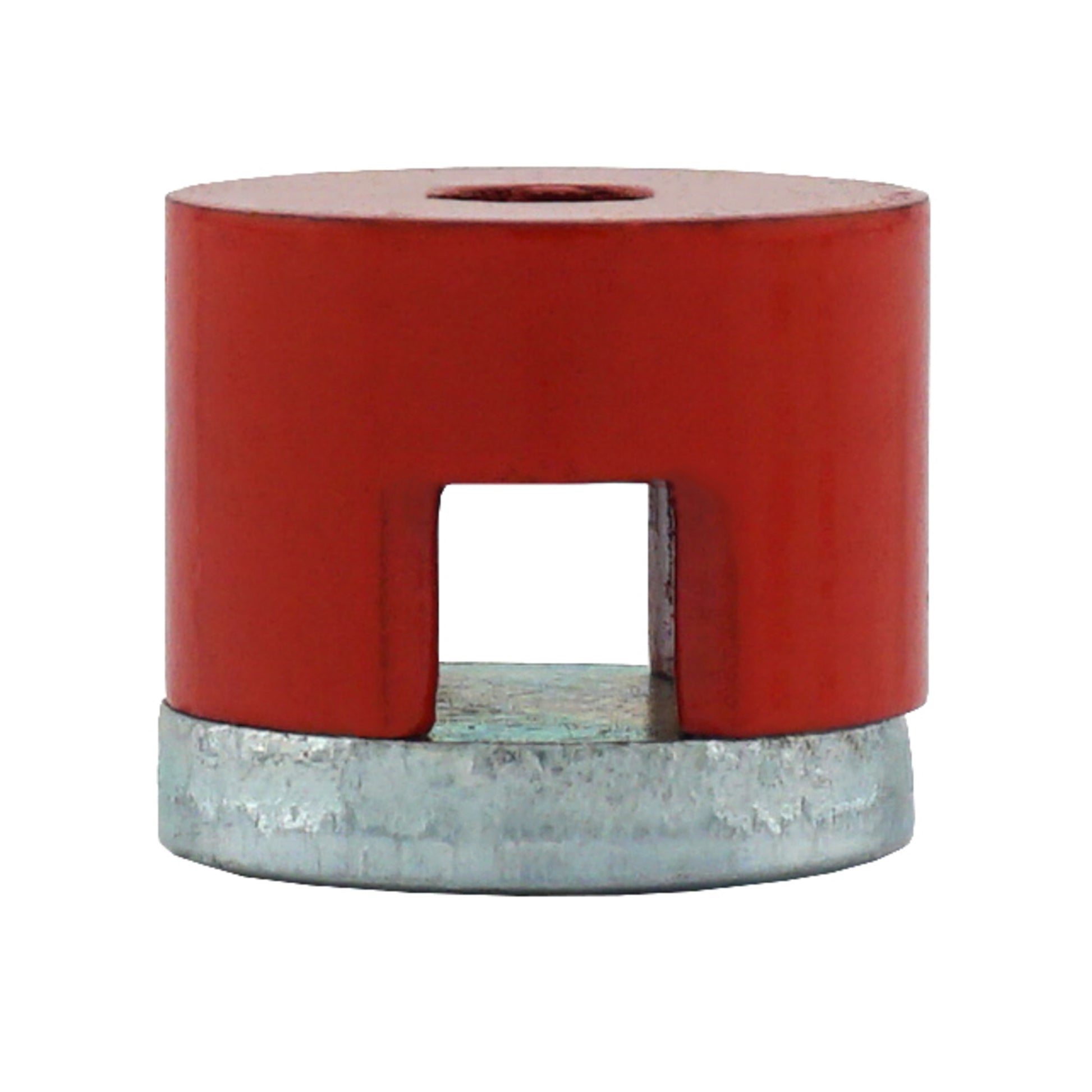

- Includes a metal keeper to help retain magnetic power
TECHNICAL SPECS
Finish/Plating
Uncoated
Grade
5
Hole Diameter (In.)
0.218
Magnet Material
Alnico
Magnet Shape
Custom
MMI Part #
AH2822N
Multiple Poles
Yes
Number of Holes
1
Number of Items in Sell Pack
1
Number of Poles
2
Pole Width
0.7
Product Color
Red + Silver
Product Diameter (In.)
0.75
Product Height (In.)
0.5
Product Material
Steel
Product Shape
Round
Product Thickness (In.)
0.27
Pull Rating
4
Tapped Hole
No
Thread Size
N/A
Weight (lbs)
0.0505
PRODUCT DESCRIPTION
.75" Dia. x .5" H w/ .218" hole¸ 4 lbs. pull
AH2822N
These Alnico 5 holding magnets can be used in a variety of industrial and consumer applications. Center hole allows for easy mounting. Each includes keeper to retain magnetic strength when not in use.
- Use as work holding devices for wood cutting, sign making or other hobby applications
- Ideal for school experiments and high heat applications
- Includes a metal keeper to help retain magnetic power
×
Finish/Plating | Uncoated |
Grade | 5 |
Hole Diameter (In.) | 0.218 |
Magnet Material | Alnico |
Magnet Shape | Custom |
MMI Part # | AH2822N |
Multiple Poles | Yes |
Number of Holes | 1 |
Number of Items in Sell Pack | 1 |
Number of Poles | 2 |
Pole Width | 0.7 |
Product Color | Red + Silver |
Product Diameter (In.) | 0.75 |
Product Height (In.) | 0.5 |
Product Material | Steel |
Product Shape | Round |
Product Thickness (In.) | 0.27 |
Pull Rating | 4 |
Tapped Hole | No |
Thread Size | N/A |
Weight (lbs) | 0.0505 |
