Remove tramp iron from free-flowing materials such as corn, sugar, flour, gravel and granular plastic. Can be installed in chutes or suspended above conveyor belts and pulleys for low volume, lightweight and/or slow-moving applications. These standard ceramic plate magnets are available in single gap design, and are offered in 1” thick (standard) or 1.5” thick (Heavy-Duty) models.
Ideal for removing tramp iron from free-flowing materials such as corn, sugar, gravel, and granular plastics

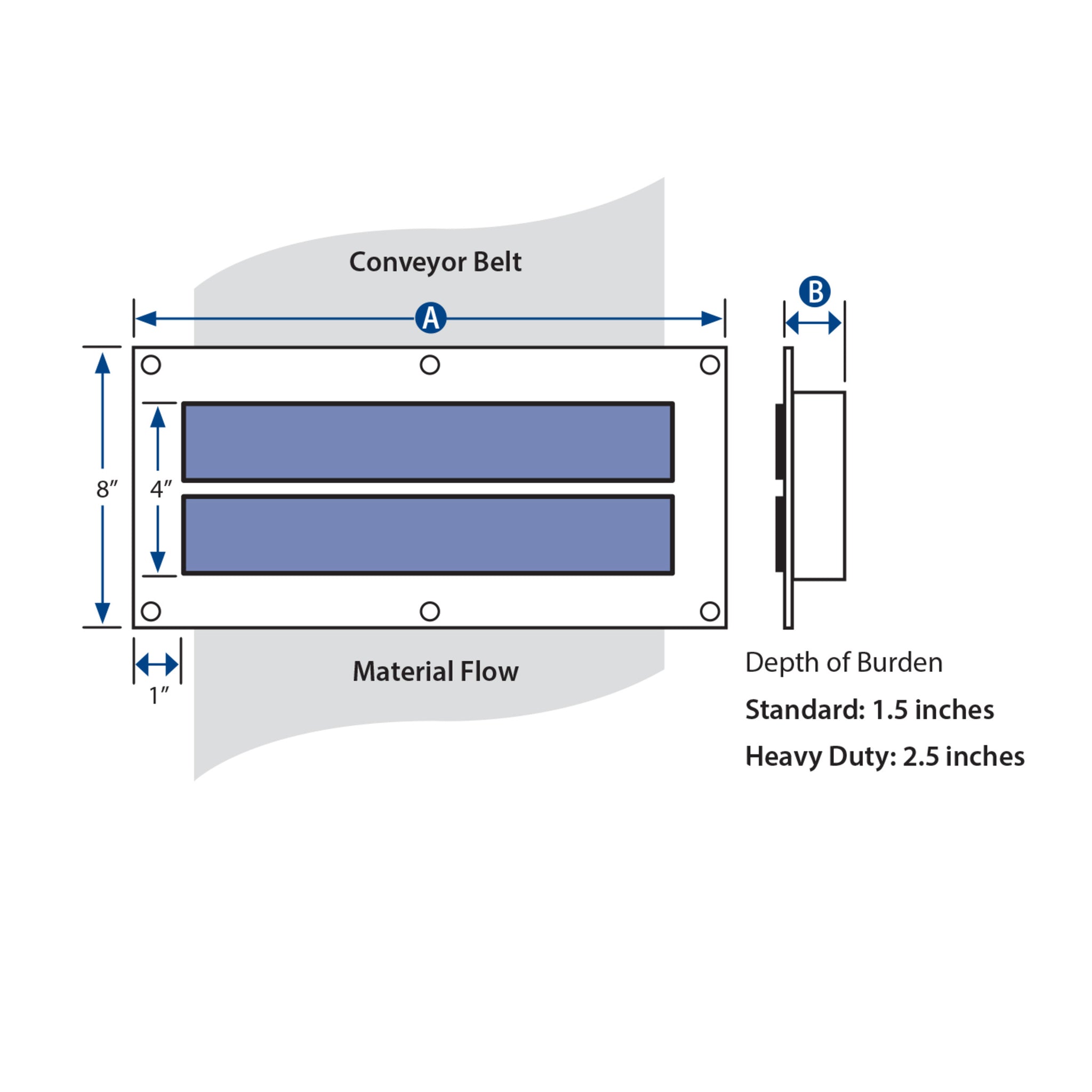

Recommend cutting hole to 5" wide x 1" less than overal length of magnet
Industrial, farming and agricultural uses
Master Magnetics is your Magnet Source for Separating Magnets. Check out our full collection here.
TECHNICAL SPECS
Distance Between Mounting Holes
6
Finish/Plating
Stainless Steel
Grade
5
High-Grade
No
Magnet Material
Ceramic
MMI Part #
PMSS1850
Number of Holes
8 four per side
Product Color
Silver
Product Height (In.)
1.25
Product Length/Depth (In.)
18.50
Product Material
Stainless Steel
Product Width (In.)
5.0
UPC
095421004447
Weight (lbs)
15.84
PRODUCT DESCRIPTION

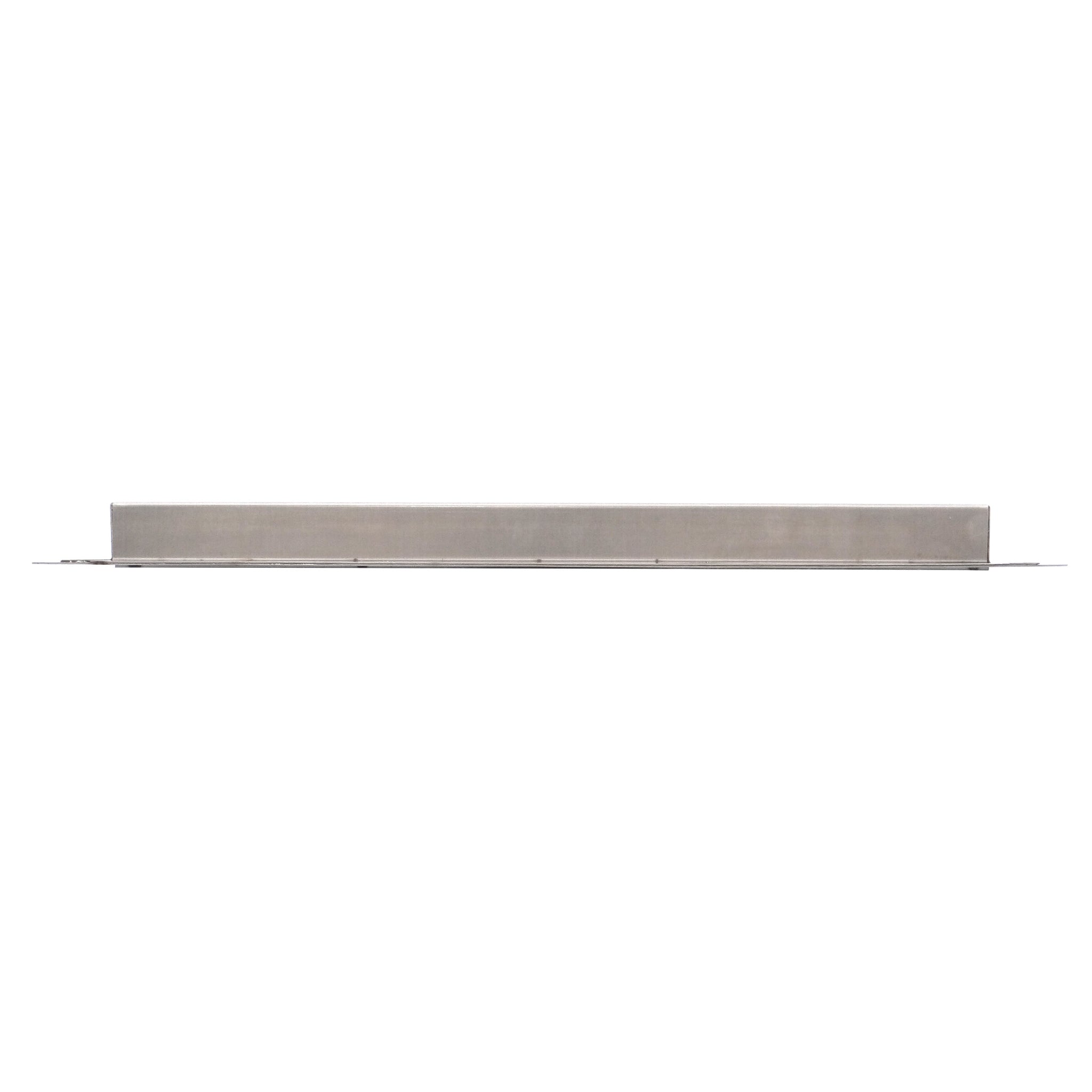

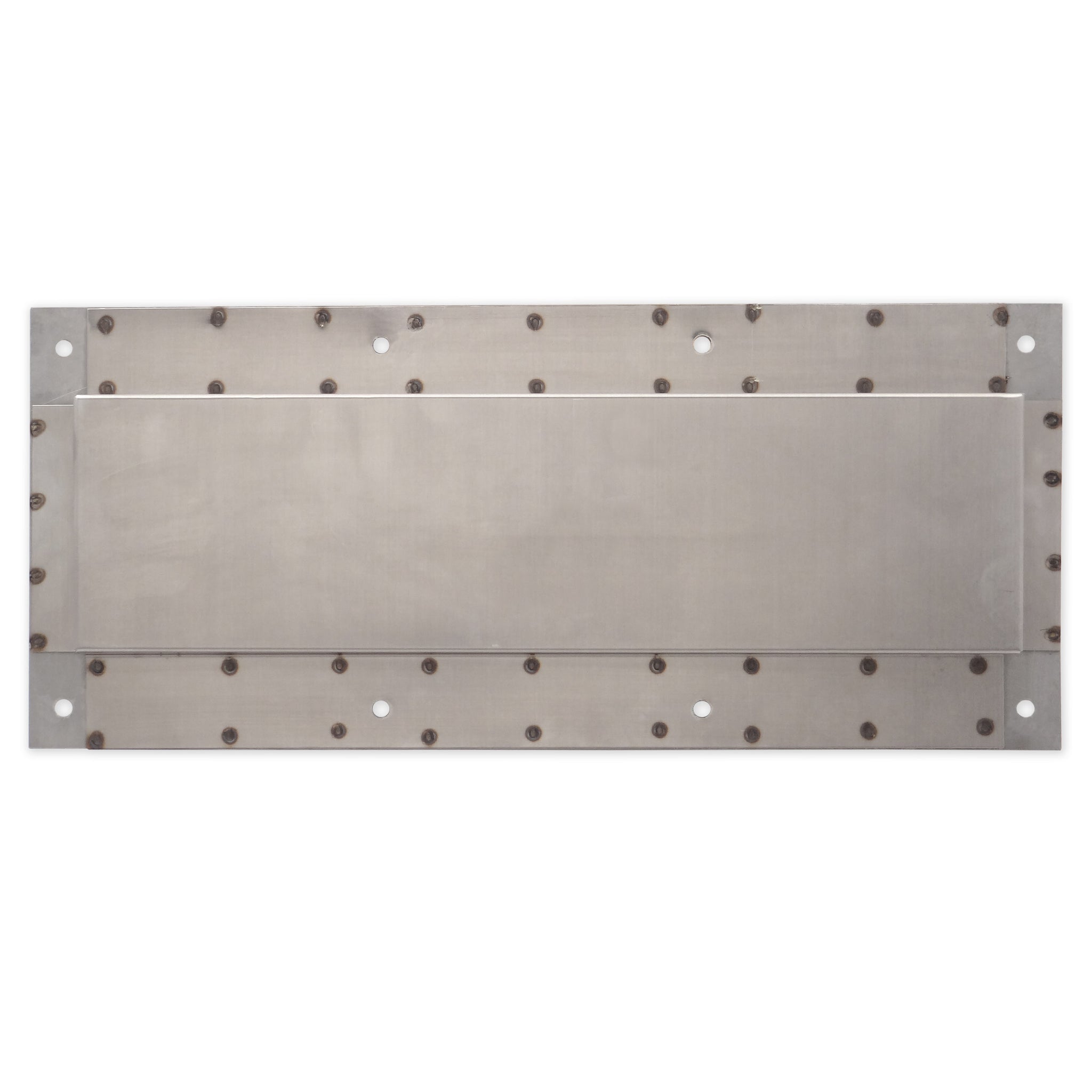

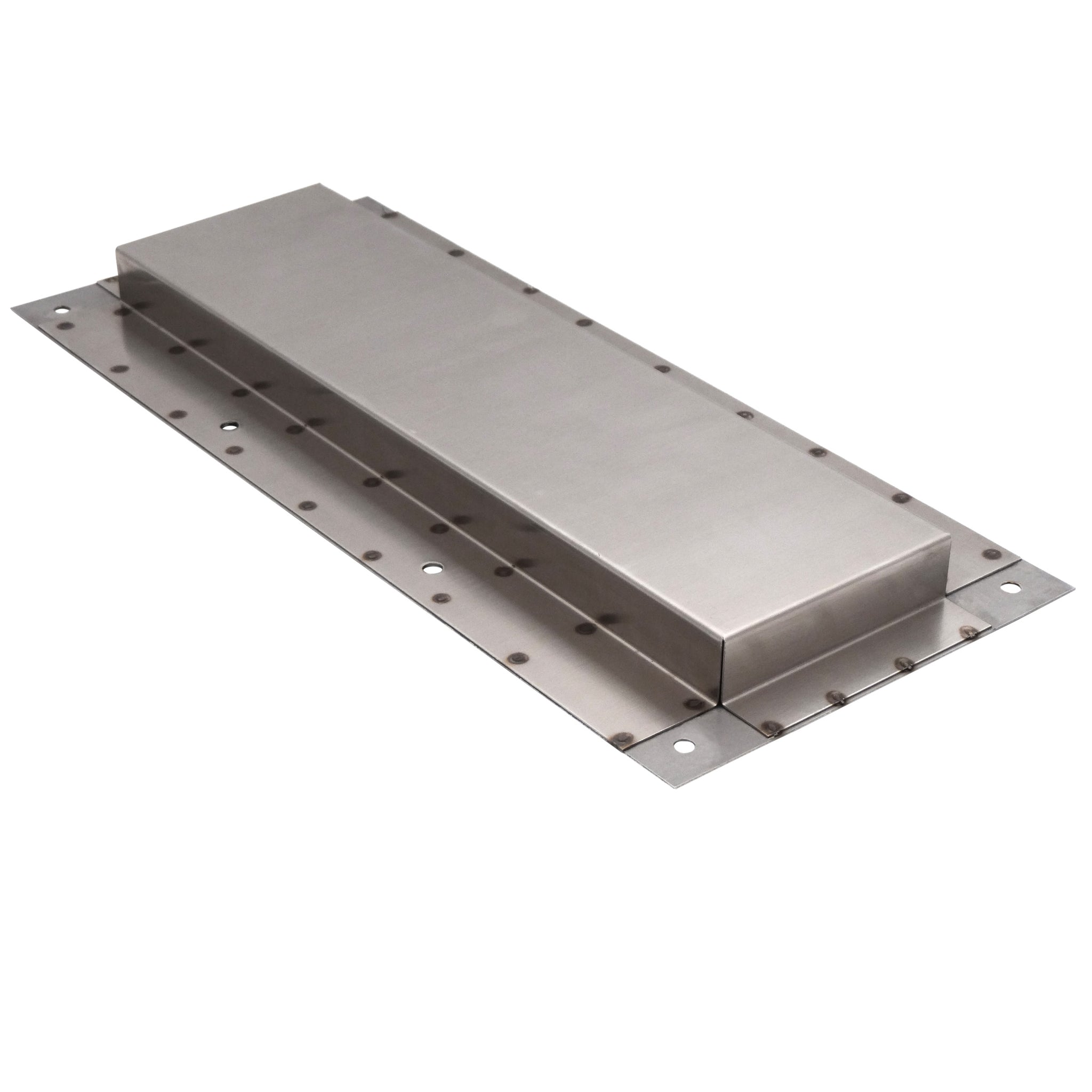

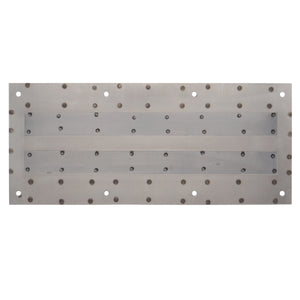

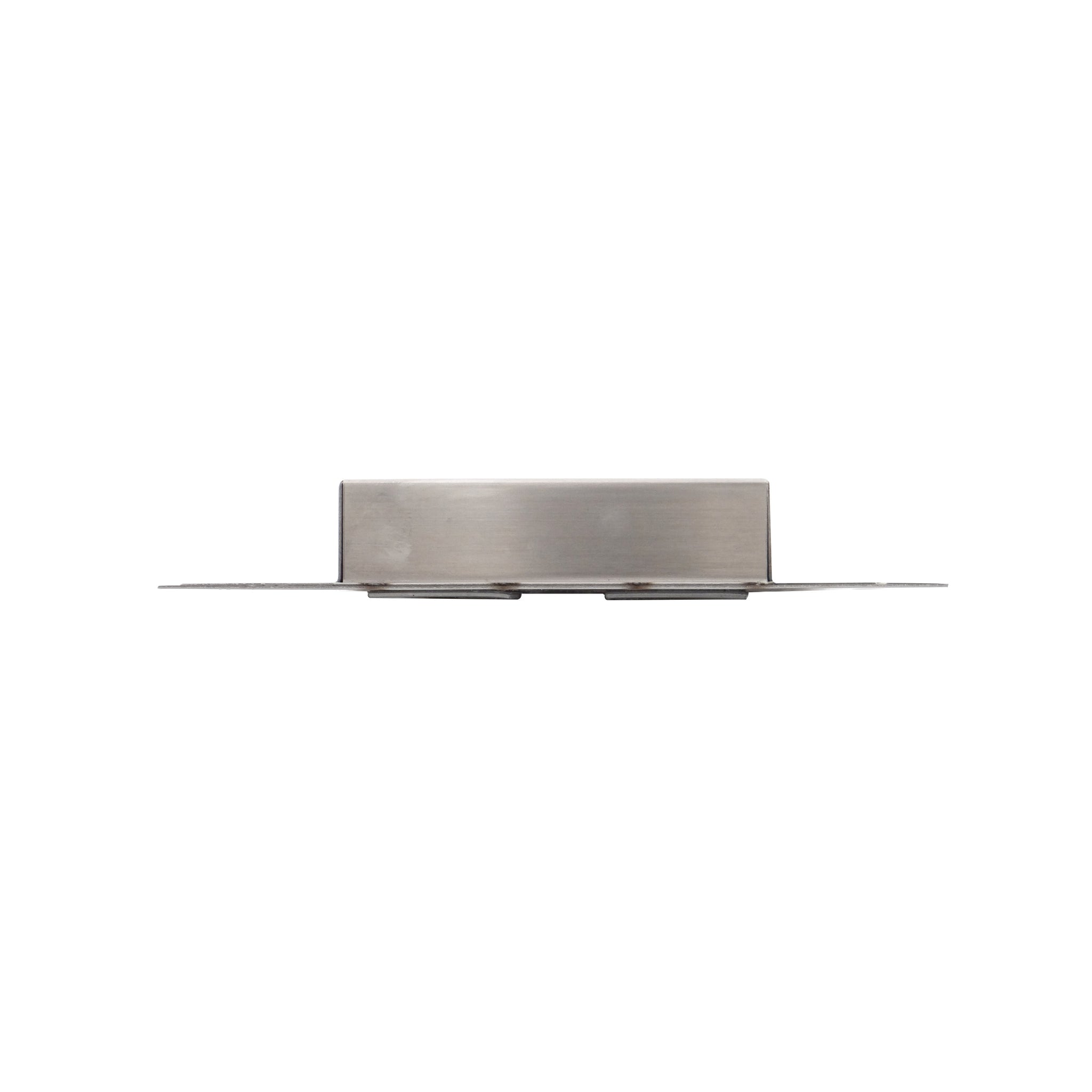

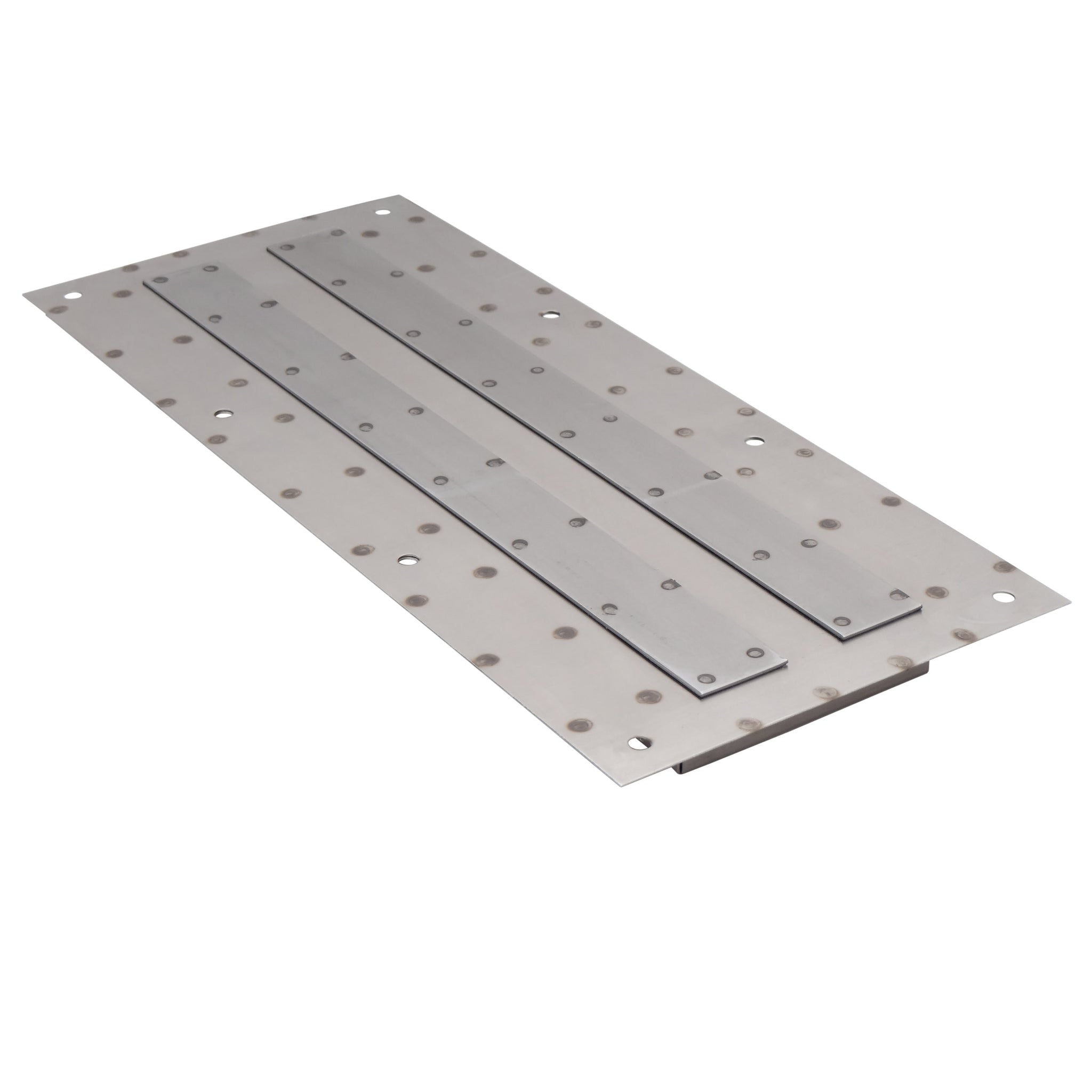

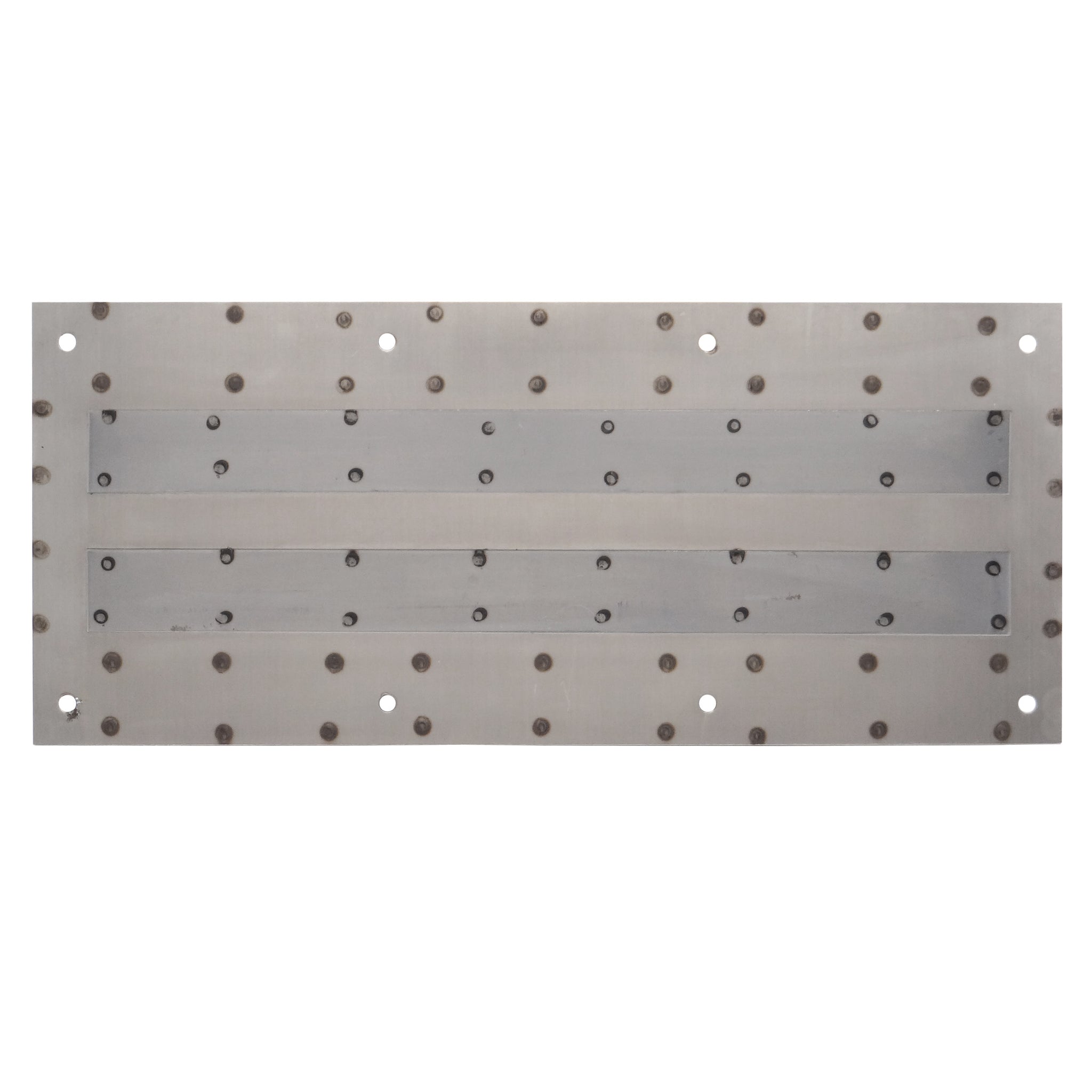

18.50" L w/ Stainless Steel Housing PMSS1850
Remove tramp iron from free-flowing materials such as corn, sugar, flour, gravel and granular plastic. Can be installed in chutes or suspended above conveyor belts and pulleys for low volume, lightweight and/or slow-moving applications. These standard ceramic plate magnets are available in single gap design, and are offered in 1” thick (standard) or 1.5” thick (Heavy-Duty) models.
Ideal for removing tramp iron from free-flowing materials such as corn, sugar, gravel, and granular plastics
Recommend cutting hole to 5" wide x 1" less than overal length of magnet
Industrial, farming and agricultural uses
Master Magnetics is your Magnet Source for Separating Magnets. Check out our full collection here.
Remove tramp iron from free-flowing materials such as corn, sugar, flour, gravel and granular plastic. Can be installed in chutes or suspended above conveyor belts and pulleys for low volume, lightweight and/or slow-moving applications. These standard ceramic plate magnets are available in single gap design, and are offered in 1” thick (standard) or 1.5” thick (Heavy-Duty) models.
Ideal for removing tramp iron from free-flowing materials such as corn, sugar, gravel, and granular plastics
Recommend cutting hole to 5" wide x 1" less than overal length of magnet
Industrial, farming and agricultural uses
Master Magnetics is your Magnet Source for Separating Magnets. Check out our full collection here.
Remove tramp iron from free-flowing materials such as corn, sugar, flour, gravel and granular plastic. Can be installed in chutes or suspended above conveyor belts and pulleys for low volume, lightweight and/or slow-moving applications. These standard ceramic plate magnets are available in single gap design, and are offered in 1” thick (standard) or 1.5” thick (Heavy-Duty) models.
Ideal for removing tramp iron from free-flowing materials such as corn, sugar, gravel, and granular plastics
Recommend cutting hole to 5" wide x 1" less than overal length of magnet
Industrial, farming and agricultural uses
Master Magnetics is your Magnet Source for Separating Magnets. Check out our full collection here.
Interested in learning more about magnets? Check out Polarity - a magnet blog.View Articles
